Benefits

• Versatile manual handle or gearbox + handle option

• BOS engineering offers smooth manual operation, even with heavy loads

• Easy to lift your drawbar up using drill or handle

• Compact length requires less space on frame when horizontal

• Wheel position lock prevents risk of ground contact under tow

• Individual Unit Weight: 12.6kgs

• Shipping Size: 70x 26x 19x 21kgs

Ideal For

• Moving across sealed surfaces

• Mid to heavy-weight vans and trailers where relocation on the wheel is required

• Ball weights of up to 400kg

• Highly recommended for single and double-axle vans with movers installed to wheels

• Also very responsive for pushing vans and trailers across sealed surfaces using manpower

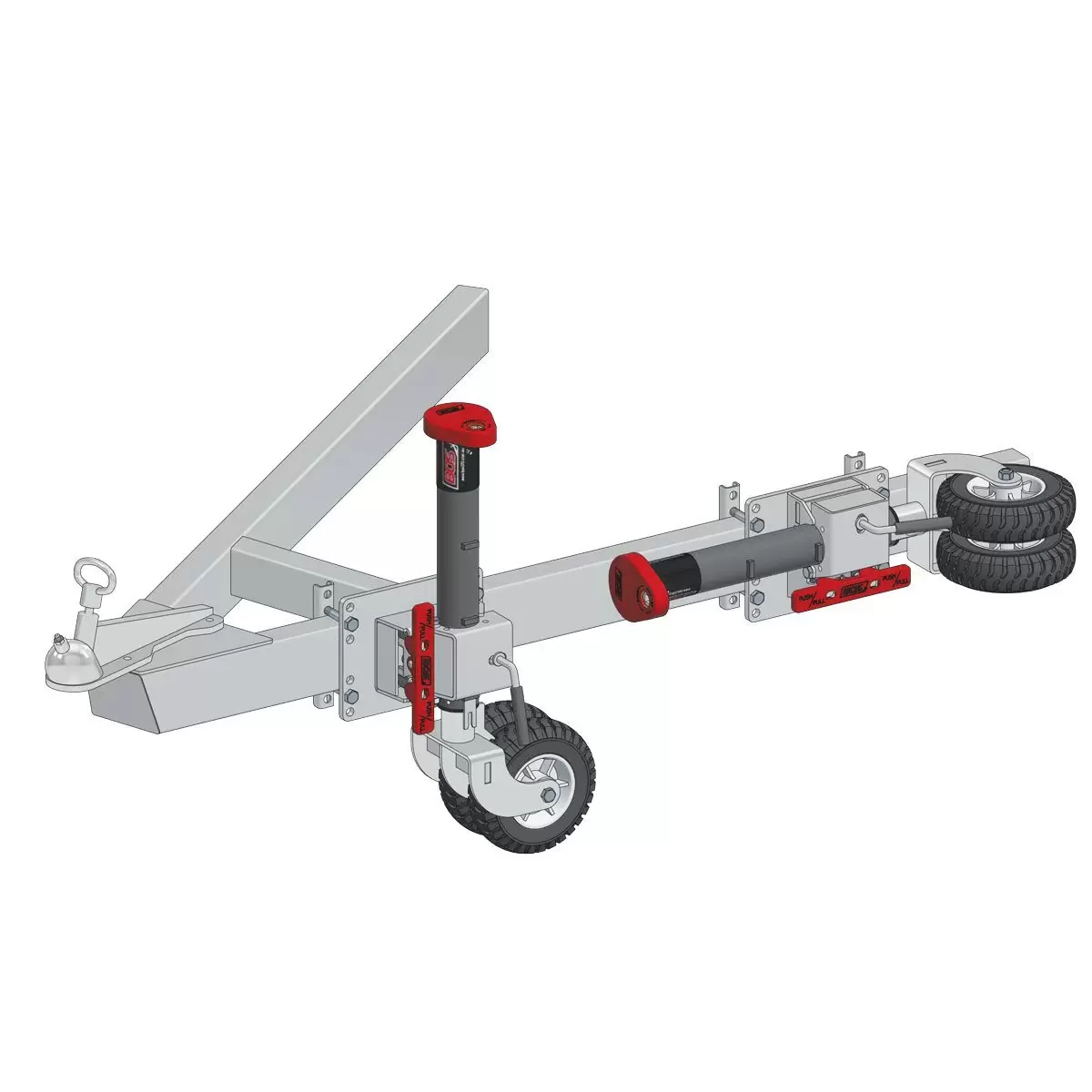

• Best suited for mounting to 75/100/125/150mmh x 50mmw frame

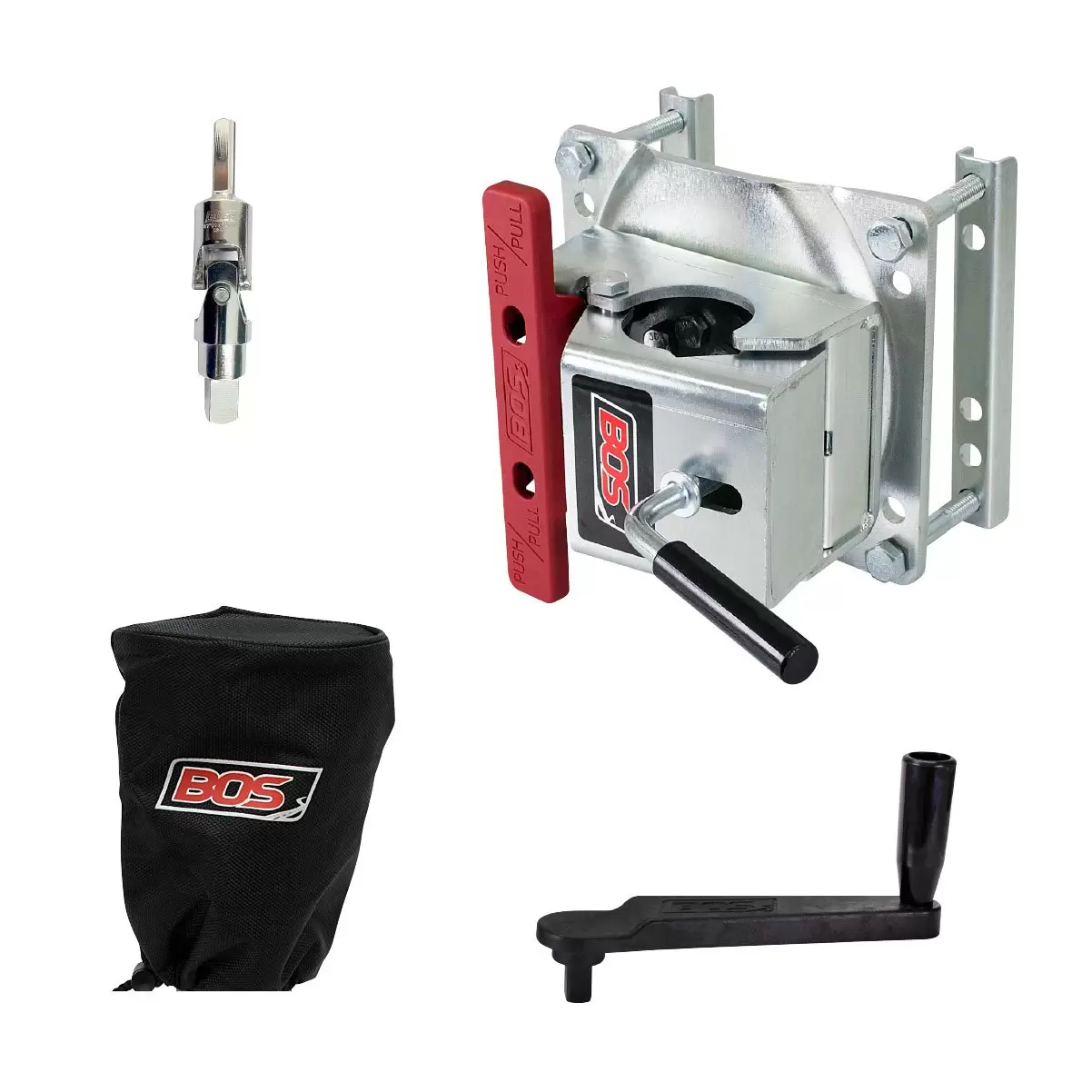

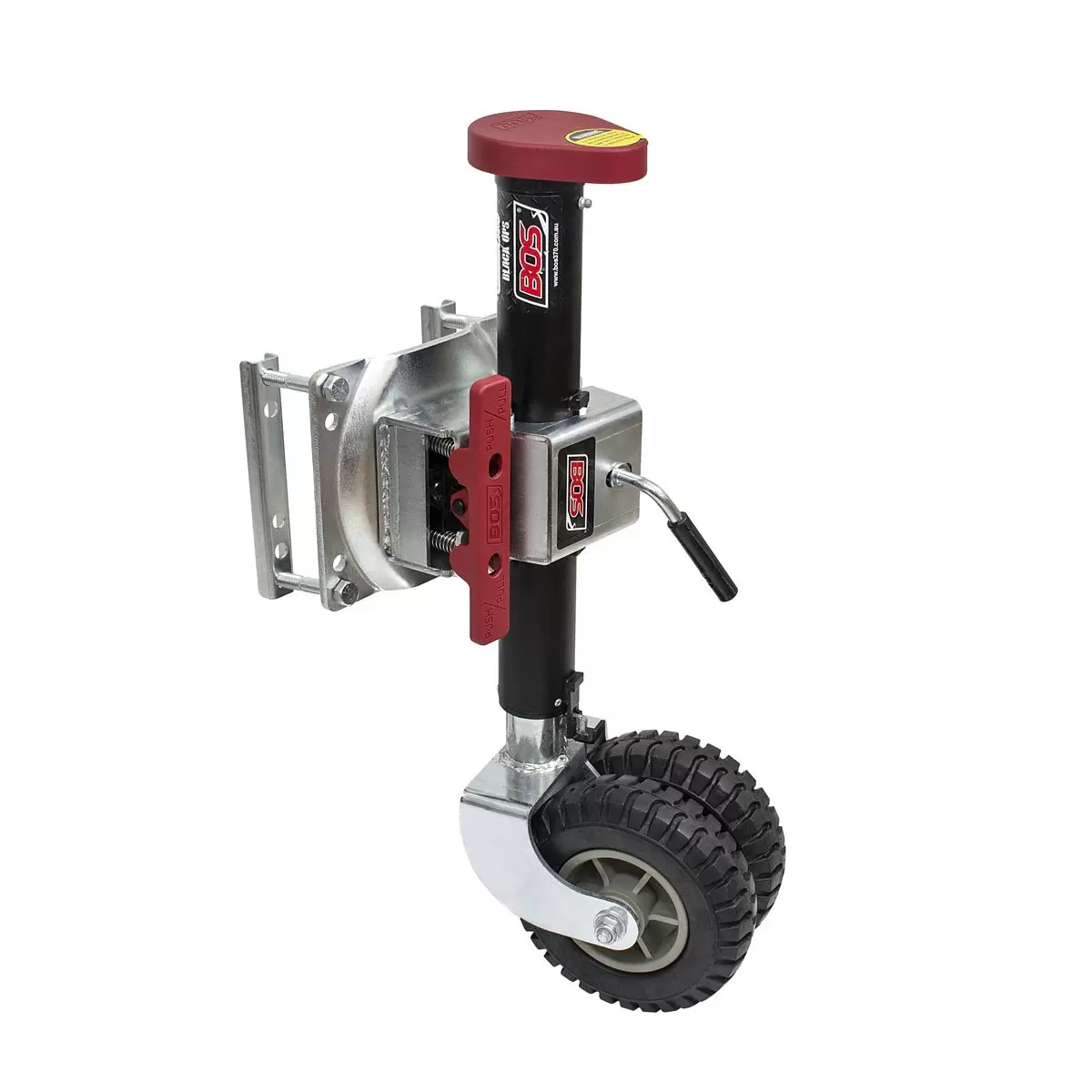

• 350-001 BOS Swingaway Bracket 60mm

• 020-003 Handle 12mm (HDFR) Nylon*

• 020-007 Bos 12mm Drill Attachment

• 370-COVER Jockey Weather Cover*

• What is in the Kit (pdf)

• Key Features (pdf)

• Dimensions (pdf)

• Swingaway Details (pdf)

• Installation Options (pdf)
